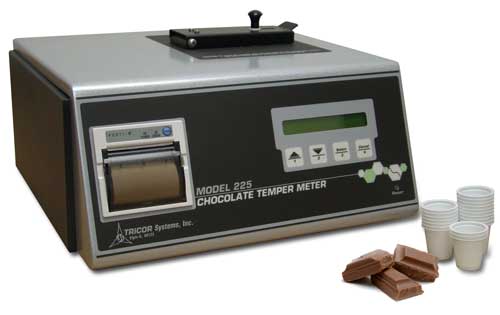

225 Chocolate Temper Meter Specifications & Features
| Dimensions: | 20.3H x 34.3W x 33D cm (8H x 13.5W x 13D inches) |
|---|---|
| Weight: | TBD kg (TBD lb) |
| Power Requirements: | 115/220 V ac, 50/60 Hz, 1.7/0.85 A (universal input) |
| Sample Test Time*: | 5 minutes standard |
| Sample Volume | 11.0 ml (0.38 oz) |
| Sample Stabilization Time | 30 seconds |
| Chocolate Temper Unit (CTU) Repeatability | ±1.0 CTU |
| Cooler Temperature Stability | ±0.06°C (±0.1°F) |
| Probe Heater Temperature Accuracy | ±0.6°C (±1.0°F) |
| Temperature Measurement Sensitivity | ±0.006°C (±0.010°F) |
| Temperature Measurement Range | 15° to 29°C (58° to 86°F) standard |
| Temper Curve Temperature Scale | 15° to 29°C (58° to 86°F) standard |
| Ambient Operating Temperature Range | 10° to 38°C (50°F to 100°F) |
| Self-Test | Automatic self-test on power-up |
| Display | LCD, 2 line x 24 characters |
| Internal Tape Printer | Included |
| Test Results | Display provides CTU and slope values |
| Operation Manual | Included |
| Operator Prompts | Display provides full step-by-step instructions |
| Print-Plot | Print test data and plot temper curves at a remote printer |
|---|---|
| *Adjustable Sample Test Time | Switch selectable: 3 to 10 minutes |
| User Programmable Temperature Range | Between 15° to 46°C (14° band) and 58° to 116°F (28° band) |
| Data Management Package | TMDAS© (Temper Meter Data Acquisition Software) is a Windows®-based program that allows users to transfer test runs to a computer for further use and analysis. The files created by TMDAS© can be converted into many popular spreadsheet and database formats. |
 |
 |
| Print-Plot Printout | Sample Data management Screen |
 |
|
| Downloaded Test Results |
For more information on this or any other of TRICOR's products or services please Contact Us
TD-568
