| Self Test |
Automatic Computer System Self Test on Power up |
| Display |
Displays CTU and temper slope at end of run |

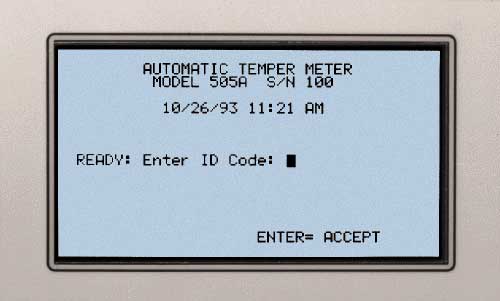

| Operator Prompts |
16 line x 40 character display provides step-by-step instructions |
| Sample Cups |
Self-stored, disposable plastic cups, controlled sample size, no mess |
| Test Identification |
Keyboard to allow test identification (e.g., operator, run no., production line, etc.) |

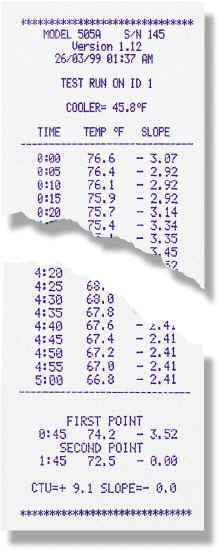

| Long form |
Prints test ID no., date, time, unit serial no., model no., software version no., cooler temperature, run time, chocolate temperature, temperature slope, 1st and 2nd inflection points of temperature curve, CTU, and temper slope. |
| Short form |
Prints test ID no., date, time, unit serial no., cooler temp 1st and 2nd inflection points, CTU, and temper slope |
| Real-Time Clock |
Provides date and time on display/printout |

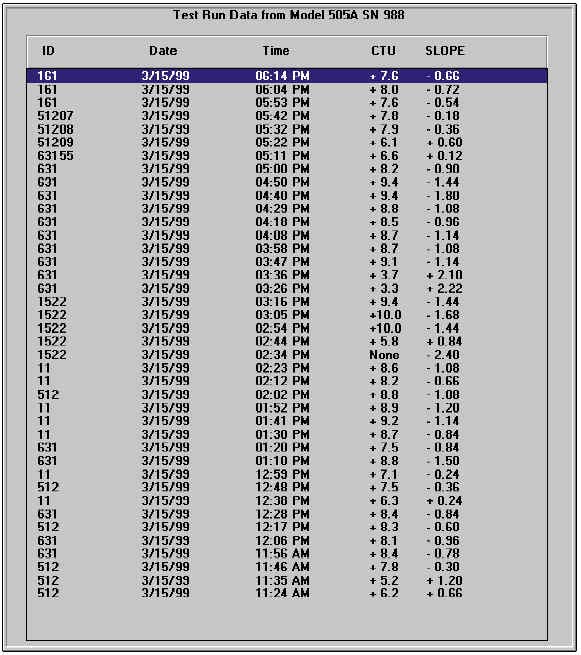

| Memory Data Storage |
Stores 40 long form runs, retained on Power down |
| Serviceability |
Calibration and self-diagnostics via keyboard accomplished by user |
| Self-Diagnostics |
Cooler temperature, heater temperature, printer, keyboard, serial I/O port and calibration |

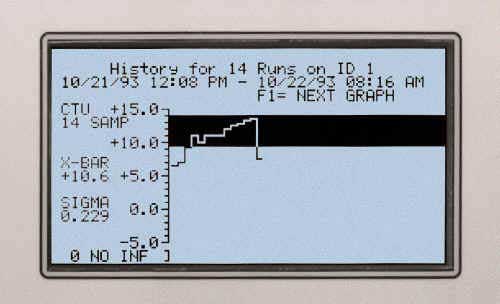

| Statistics |
Historical data displayed for CTU and temper slope |

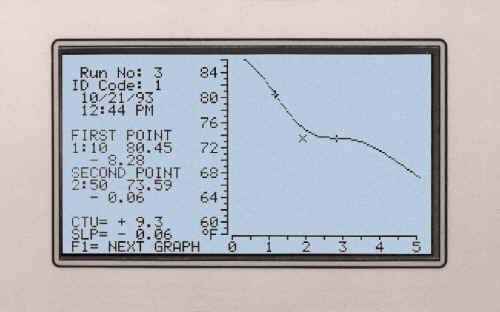

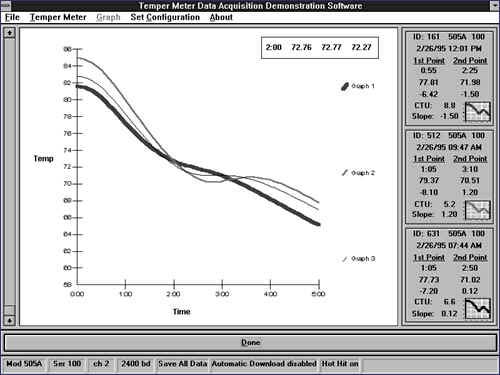

| Print - Plot Options |
Hard copy - plots actual temper curve to a printer.
Display - plots actual temper curve on display |
| Operation Manual |
Included |
