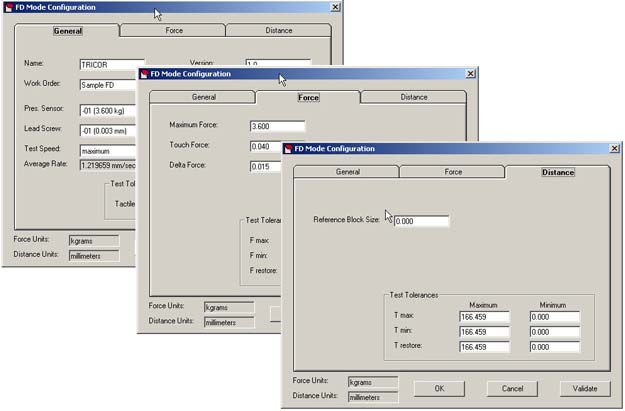

921B Test Configuration

921B Test Configuration
Configuration Test Summary
Display Name TRICOR
Display Version 1.0
Work Order Number Sample FD
Transducer -01 (3.600 kg)
Lead Screw -01 (0.003 mm)
Steps/Log 1
Speed 1.220 mm/sec
Block Reference 0.000 mm
Maximum Force 3.600 kg
Touch Force 0.040 kg
Nest Code none
Configuration ID 0x0F3597DC
  Minimum Maximum
TMAX 0.000 mm 166.459 mm
TMIN 0.000 mm 166.459 mm
TRESTORE 0.000 mm 166.459 mm
FMAX 0.000 kg 3.600 kg
FMIN 0.000 kg 3.600 kg
FRESTORE 0.000 kg 3.600 kg
Tactile Ratio 0.00% 100.00%
Delta Force 0.015 kg
