933A Life Cycle & Fatigue Tester

Model 933 Lifecycle Test System
  • Up to 10 cycles per second (programmable)
  • Measure circuit resistance and bounce time
  • Test to ASTM standards F1578, F1661, etc.
  • Stand-alone or PC based operation

Life Cycle and Fatigue Product Testing

  • Tests keyboards, keypads, membranes, snap-action switches, micro switches, general purpose switches and any product requiring fatigue testing.
  • Up to 10 cycles per second (programmable).
  • Measure circuit resistance and bounce time.
  • Test to ASTM standards F1578, F1661, etc.
  • Stand-alone or PC based operation.
  • Adjustable force and impact speed.

The Model 933A Life Cycle Tester is a low cost, generic test platform used to perform cycling of keypads, keyboards, membranes, switches, or any product requiring fatigue testing. The system consists of control box, air cylinder with test stand, and software installed by the user in a standard computer. It features a single analog channel used to measure contact resistance and bounce (expandable to four), and an air cylinder with a silicone rubber tip to simulate activation of a finger. The air cylinder may be supplied in various throw lengths, diameters even environmentally sealed. The control box allows for adjusting the velocity, force and acceleration of the cylinder.

A user-friendly Windows® software environment allows the user to create test parameters for the unit under test (UUT), i.e., specified resistance, bounce time, number of cycles, allowed fails, cycles/second, etc. The configuration is then transferred to the control box for stand-alone or PC based operation.

Testing of the UUT is as simple as operating to a predefined number of cycles. During cycling the 933A may test for: resistance, contact bounce, total number of fails, and total consecutive fails and then compare test results to the user specified parameters. The system may stop testing if a specified number, or consecutive number of failures of test parameters have occurred.

The 933A is a cost-effective, fast-acting tool, which is easily operated and modified to test a variety of parameters and products.

Contact Resistance Range: 0 - 1k, 0 - 10k, 0 - 100k
Contact Bounce Time (per ASTM 1661): 25 µsec - 65msec
Power Requirements: 12 Vdc (Power supply supplied) 115/220 Vac
Counters: 1 - 65,000,000
Programmable Features
  • Maximum Test Cycles
  • Cycles per second
  • Maximum Test Failures
  • Maximum Sequential Failures
  • Maximum and minimum Resistance
  • Maximum Contact Bounce Time
System Components
  • Control Unit (1 Analog Channel)
  • RS 232 Cable
  • Power Supply
  • Cylinder & Hoses
  • Operating Instructions
  • Model 933A Windows® 95, 98 Application Software
Customer Requirements
  • Personal Computer: Win95/98/NT, one serial port
  • Shop Air: 1/2" fitting, 40 - 125 psi
Options
  • Environmentally sealed cylinders
  • Multiple cylinder holding fixture
  • External counter

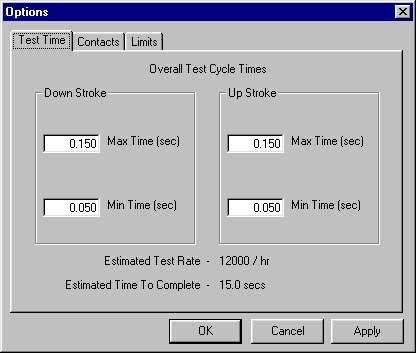

Configure Life Cycle Test Time
Configure Test Time

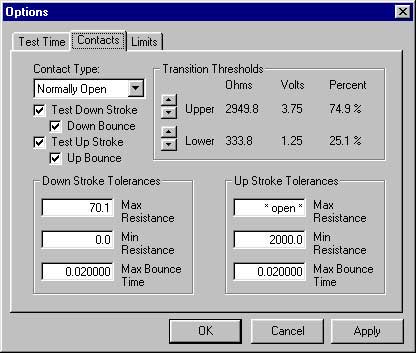

Configure Contact Testing
Configure Contact Testing
Configure Life Cycle Test Limit
Configure Test Limit

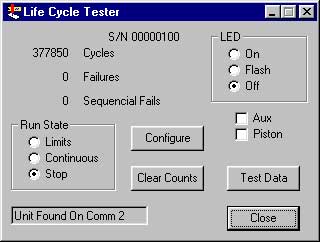

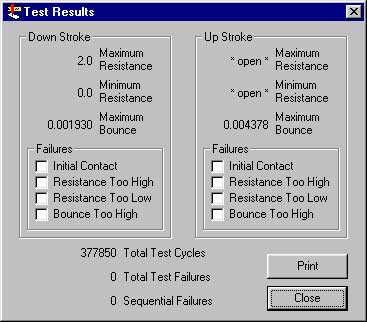

Life Cycle Test Result
Test Result
